Write An Encrypted Text File In Visual Basic

on

There are many ways to encrypt text or data. In this tutorial, DESCryptoServiceProvider class to encrypt and decrypt strings using the cryptographic service provider version of the Triple Data Encryption Standard algorithm.

The use encryption to protect secret data and to make data unreadable by unauthorized users.

Creating encryption wrapper

  1. Open the previous project from this tutorial Write Text To File In Visual Basic then rename it to WriteTextToFileWithEncryptionVB or create a new project. I recommend to open the existing project to easily follow this tutorial.


  2. Create the Encryption3DesWrapper class to implement the encryption and decryption methods.

    3. 1
    2
    3
    Public NotInheritable Class Encryption3DesWrapper

    End Class

  3. Add an import of the cryptography namespace to the start of the file that contains the Encryption3DesWrapper class.

    4. 1
    2
    3
    4
    5
    Imports System.Security.Cryptography

    Public Class Encryption3DesWrapper

    End Class

  4. In the Encryption3DesWrapper class, add a private field to store the TripleDES cryptographic service provider.

    5. 1
    2
    3
    4
    5
    6
    Imports System.Security.Cryptography

    Public Class Encryption3DesWrapper
        Private TripleDesProvider As New TripleDESCryptoServiceProvider

    End Class

  5. Add a private method that creates a byte array of a specified length from the hash of the specified key.

    6.  1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    Imports System.Security.Cryptography

    Public Class Encryption3DesWrapper
        Private TripleDesProvider As New TripleDESCryptoServiceProvider

        Private Function TruncateHash(ByVal PassPhrase As String, ByVal Length As Integer) As Byte()
            Dim Sha1 As New SHA1CryptoServiceProvider

            Dim PassPhraseBytes() As Byte = System.Text.Encoding.Unicode.GetBytes(PassPhrase)
            Dim Hash() As Byte = Sha1.ComputeHash(PassPhraseBytes)

            ReDim Preserve Hash(Length - 1)
            Return Hash
        End Function

    End Class

  6. Add a constructor to initialize the TripleDES cryptographic service provider. The PassPhrase parameter controls the EncryptData and DecryptData methods.

    7.  1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    Imports System.Security.Cryptography

    Public Class Encryption3DesWrapper
        Private TripleDesProvider As New TripleDESCryptoServiceProvider

        Public Sub New(ByVal PassPhrase As String)
            TripleDesProvider.Key = TruncateHash(PassPhrase, TripleDesProvider.KeySize \ 8)
            TripleDesProvider.IV = TruncateHash("", TripleDesProvider.BlockSize \ 8)
        End Sub

        Private Function TruncateHash(ByVal PassPhrase As String, ByVal Length As Integer) As Byte()
            Dim Sha1 As New SHA1CryptoServiceProvider

            Dim PassPhraseBytes() As Byte = System.Text.Encoding.Unicode.GetBytes(PassPhrase)
            Dim Hash() As Byte = Sha1.ComputeHash(PassPhraseBytes)

            ReDim Preserve Hash(Length - 1)
            Return Hash
        End Function

    End Class

  7. Add a public method that encrypts a string.

    8.  1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    Imports System.Security.Cryptography

    Public Class Encryption3DesWrapper
        Private TripleDesProvider As New TripleDESCryptoServiceProvider

        Public Sub New(ByVal PassPhrase As String)
            TripleDesProvider.Key = TruncateHash(PassPhrase, TripleDesProvider.KeySize \ 8)
            TripleDesProvider.IV = TruncateHash("", TripleDesProvider.BlockSize \ 8)
        End Sub

        Private Function TruncateHash(ByVal PassPhrase As String, ByVal Length As Integer) As Byte()
            Dim Sha1 As New SHA1CryptoServiceProvider

            Dim PassPhraseBytes() As Byte = System.Text.Encoding.Unicode.GetBytes(PassPhrase)
            Dim Hash() As Byte = Sha1.ComputeHash(PassPhraseBytes)

            ReDim Preserve Hash(Length - 1)
            Return Hash
        End Function

        Public Function EncryptData(ByVal PlainTextData As String) As String

            Dim PlainTextBytes() As Byte = System.Text.Encoding.Unicode.GetBytes(PlainTextData)

            Dim ms As New System.IO.MemoryStream

            Dim Stream As New CryptoStream(ms, TripleDES.CreateEncryptor(), System.Security.Cryptography.CryptoStreamMode.Write)

            Stream.Write(PlainTextBytes, 0, PlainTextBytes.Length)
            Stream.FlushFinalBlock()

            Return Convert.ToBase64String(ms.ToArray)
        End Function

    End Class

  8. Add a public method that decrypts a string.

    9.  1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    Imports System.Security.Cryptography

    Public Class Encryption3DesWrapper
        Private TripleDesProvider As New TripleDESCryptoServiceProvider

        Public Sub New(ByVal PassPhrase As String)
            TripleDesProvider.Key = TruncateHash(PassPhrase, TripleDesProvider.KeySize \ 8)
            TripleDesProvider.IV = TruncateHash("", TripleDesProvider.BlockSize \ 8)
        End Sub

        Private Function TruncateHash(ByVal PassPhrase As String, ByVal Length As Integer) As Byte()
            Dim Sha1 As New SHA1CryptoServiceProvider

            Dim PassPhraseBytes() As Byte = System.Text.Encoding.Unicode.GetBytes(PassPhrase)
            Dim Hash() As Byte = Sha1.ComputeHash(PassPhraseBytes)

            ReDim Preserve Hash(Length - 1)
            Return Hash
        End Function

        Public Function EncryptData(ByVal PlainTextData As String) As String

            Dim PlainTextBytes() As Byte = System.Text.Encoding.Unicode.GetBytes(PlainTextData)

            Dim ms As New System.IO.MemoryStream

            Dim Stream As New CryptoStream(ms, TripleDesProvider.CreateEncryptor(), System.Security.Cryptography.CryptoStreamMode.Write)

            Stream.Write(PlainTextBytes, 0, PlainTextBytes.Length)
            Stream.FlushFinalBlock()

            Return Convert.ToBase64String(ms.ToArray)
        End Function

        Public Function DecryptData(ByVal EncryptedTextData As String) As String

            Dim EncryptedBytes() As Byte = Convert.FromBase64String(EncryptedTextData)

            Dim ms As New System.IO.MemoryStream

            Dim Stream As New CryptoStream(ms, TripleDesProvider.CreateDecryptor(), System.Security.Cryptography.CryptoStreamMode.Write)

            Stream.Write(EncryptedBytes, 0, EncryptedBytes.Length)
            Stream.FlushFinalBlock()

            Return System.Text.Encoding.Unicode.GetString(ms.ToArray)
        End Function

    End Class


Using of the encryption wrapper

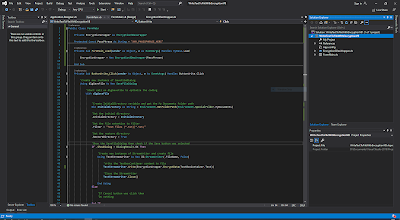

View the FormMain code and replace the with the code below and run it.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
Public Class FormMain

    Private EncryptionWrapper As Encryption3DesWrapper

    Protected Const PassPhrase As String = "ANY_PHASSPHRASE_HERE"

    Private Sub FormMain_Load(sender As Object, e As EventArgs) Handles MyBase.Load

        EncryptionWrapper = New Encryption3DesWrapper(PassPhrase)

    End Sub

    Private Sub ButtonWrite_Click(sender As Object, e As EventArgs) Handles ButtonWrite.Click

        'Create new instance of SaveFileDialog
        Using dlgSaveFile As New SaveFileDialog

            'Start call on dlgSaveFile to optimize the coding
            With dlgSaveFile


                'Create InitialDirectory variable and get the My Documents folder path
                Dim InitialDirectory As String = Environment.GetFolderPath(Environment.SpecialFolder.MyDocuments)

                'Set the initial directory
                .InitialDirectory = InitialDirectory

                'Set the file extention to filter
                .Filter = "Text files (*.txt)|*.txt;"

                'Set the restore directory
                .RestoreDirectory = True

                'Show the SaveFileDialog then check if the Save button was selected
                If .ShowDialog = DialogResult.OK Then

                    'Create new instance of StreamWriter and create file
                    Using TextStreamWriter As New IO.StreamWriter(.FileName, False)

                        'Write the TextboxContianer content to file
                        TextStreamWriter.Write(EncryptionWrapper.EncryptData(TextBoxContainer.Text))

                        'Close the StreamWriter
                        TextStreamWriter.Close()

                    End Using
                Else

                    'If Cancel button was click then
                    'Do nothing

                End If

            End With

        End Using

    End Sub

    Private Sub FormMain_FormClosing(sender As Object, e As FormClosingEventArgs) Handles Me.FormClosing

        EncryptionWrapper = Nothing

    End Sub

End Class


Save the this project for the future tutorials and  that's all. I hope that you enjoy my tutorials.

Subscribe to this page for more.


Download WriteTextToFileWithEncryptionVB Project
