GE SR750/760 Relay Tutorials - Part 6: Creating Phase Overcurrent Protection Element Blocks and Parameters

In this tutorial, will show how to create multiple blocks and parameters, copying blocks and parameters, linking parameters to another parameters using conditional formula like iif(), inserting overcurrent test module in the test document (OCC).

Welcome to the sixth part of GE SR750/760 Relay Tutorial series. If you haven't seen the previous tutorials, click the link below:

Part 5: Link XRIO Parameters Into RIO Device Function In The Test Object

GE SR750/760 Relay Tutorials

Open the test document that been created from the previous tutorial (Part 3).

When the Omicron Control Center document is open, select the Hardware Configuration then go to Insert tab in the ribbon menu. In the Insert tab, click the Group button to insert a new folder group under the Hardware Configuration. Right click on the new group and select properties. In the properties dialog box, set the title to Phase Current.

Select the Phase Current group and go to Insert tab then click Group button. Right click on it the select properties. In the properties dialog box, set the title to Phase Time Overcurrent 1.

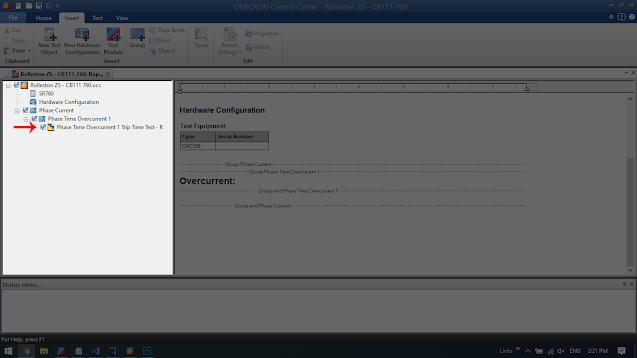

Select the Phase Time Overcurrent 1 group and go to Insert tab then click Test Module button. The Insert Test Module dialog box will popup, select create new Overcurrent then click OK. Right click on it the select properties. In the properties dialog box, set the title to Phase Time Overcurrent 1 Trip Time Test - R. Then open and close the Overcurrent test module to generate the required RIO functions in the test object.

Now, open the test object and make sure that the advanced view is checked in the view menu to enable the linking in RIO function parameters.

As you can see, Overcurrent and CB Configuration function blocks are added. Now, add new block under under GE SR750/760 » Relay Parameters » Protection and set the following properties.

GE SR750/760 » Relay Parameters » Protection
Phase Current
ID	PHASE_CURRENT
Name	Phase Current

Under Phase Current block, add new block then set the following properties

GE SR750/760 » Relay Parameters » Protection » Phase Current
Phase Time Overcurrent 1
ID	PTOC1
Name	Phase Time Overcurrent 1

Open the EnerVista 750/760 Setup, open the setting file and go to Protection » Phase Current » Phase Time Overcurrent 1. There are twelve parameter settings and add those parameter settings in the Omicron Test Object. To do that, enter the following parameter details below.

GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 1
Phase Time Overcurrent 1 Function
ID	PTOC_FUNCTION
Name	Phase Time Overcurrent 1 Function
Data Type	Enumeration
Enumeration Data	ID Name DISABLED Disabled TRIP Trip TRIP_AUTORECLOSE Trip & AutoReclose ALARM Alarm CONTROL Control LATCHED_ALARM Latched Alarm
Value	Disabled
Reference value	Disabled
Phase Time Overcurrent 1: Relay 3
ID	PTOC_RELAY3
Name	Phase Time Overcurrent 1: Relay 3
Data Type	Enumeration
Enumeration Data	ID Name DO_NOT_OPERATE Do Not Operate OPERATE Operate
Value	Do Not Operate
Reference value	Do Not Operate
Phase Time Overcurrent 1: Relay 4
ID	PTOC_RELAY4
Name	Phase Time Overcurrent 1: Relay 4
Data Type	Enumeration
Enumeration Data	ID Name DO_NOT_OPERATE Do Not Operate OPERATE Operate
Value	Do Not Operate
Reference value	Do Not Operate
Phase Time Overcurrent 1: Relay 5
ID	PTOC_RELAY5
Name	Phase Time Overcurrent 1: Relay 5
Data Type	Enumeration
Enumeration Data	ID Name DO_NOT_OPERATE Do Not Operate OPERATE Operate
Value	Do Not Operate
Reference value	Do Not Operate
Phase Time Overcurrent 1: Relay 6
ID	PTOC_RELAY6
Name	Phase Time Overcurrent 1: Relay 6
Data Type	Enumeration
Enumeration Data	ID Name DO_NOT_OPERATE Do Not Operate OPERATE Operate
Value	Do Not Operate
Reference value	Do Not Operate
Phase Time Overcurrent 1: Relay 7
ID	PTOC_RELAY7
Name	Phase Time Overcurrent 1: Relay 7
Data Type	Enumeration
Enumeration Data	ID Name DO_NOT_OPERATE Do Not Operate OPERATE Operate
Value	Do Not Operate
Reference value	Do Not Operate
Phase Time Overcurrent 1 Pickup(Setpoint)
ID	PTOC_PICKUP
Name	Phase Time Overcurrent 1 Pickup(Setpoint)
Data Type	Real
Value	1.00
Reference value	1.00
Min Value	0.05
Max Value	20.00
Unit	x CT
Digits after decimal	2
Phase Time Overcurrent 1 Curve
ID	PTOC_CURVE
Name	Phase Time Overcurrent 1 Curve
Data Type	Enumeration
Enumeration Data	ID Name EXTREMELY_INVERSE Extremely Inverse VERY_INVERSE Very Inverse NORMALLY_INVERSE Normally Inverse MODERATELY_INVERSE Moderately Inverse DEFINITE_TIME Definite Time IEC_CURVE_A IEC Curve A IEC_CURVE_B IEC Curve B IEC_CURVE_C IEC Curve C FLEXCURVE_A FlexCurve A FLEXCURVE_B FlexCurve B IAC_EXTREMELY_INVERSE IAC Extremely Inverse IAC_VERY_INVERSE IAC Very Inverse IAC_INVERSE IAC Inverse IAC_SHORT_INVERSE IAC Short Inverse IEC_SHORT_INVERSE IEC Short Inverse
Value	IEC Curve A
Reference value	IEC Curve A
Phase Time Overcurrent 1 Multiplier
ID	PTOC_MUTIPLIER
Name	Phase Time Overcurrent 1 Multiplier
Data Type	Real
Value	1.00
Reference value	1.00
Min Value	0.00
Max Value	100.00
Unit
Digits after decimal	2
Phase Time Overcurrent 1 Reset
ID	PTOC_RESET
Name	Phase Time Overcurrent 1 Reset
Data Type	Enumeration
Enumeration Data	ID Name INSTANTANEOUS Instantaneous LINEAR Linear
Value	Linear
Reference value	Linear
Phase Time Overcurrent 1 Direction
ID	PTOC_DIRECTION
Name	Phase Time Overcurrent 1 Direction
Data Type	Enumeration
Enumeration Data	ID Name DISABLED Disabled FORWARD Forward REVERSE Reverse
Value	Disabled
Reference value	Disabled
Phase Time Overcurrent 1 Voltage Restraint
ID	PTOC_VOLTAGE_RESTRAINT
Name	Phase Time Overcurrent 1 Voltage Restraint
Data Type	Enumeration
Enumeration Data	ID Name DISABLED Disabled ENABLED Enabled
Value	Disabled
Reference value	Disabled

Once completed, it should be looked like in the image below.

Copy the Phase Time Overcurrent 1 block and paste it into the same block and rename it to Phase Time Overcurrent 2 and set the ID to PTOC2. Change the 1 parameters name number from 1 to 2. Once it done, that should be looked like in the image below.

On the XRIO block, add new block then set the following block parameters.

GE SR750/760 » XRIO
Phase Current
ID	PHASE_CURRENT
Name	Phase Current

Then add another block under XRIO » Phase Current block and set the following parameters.

GE SR750/760 » XRIO » Phase Current
Phase Time Overcurrent
ID	PTOC
Name	Phase Time Overcurrent

Then add another block under XRIO » Phase Current » Phase Time Overcurrent block and set the following parameters.

GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent
Phase Time Overcurrent 1
ID	PTOC1
Name	Phase Time Overcurrent 1

Then, add the following parameters.

GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 1
Function Enabled
ID	FUNCTION_ENBALED
Name	Function Enabled
Data Type	Boolean
Pickup
ID	PICKUP
Name	Pickup
Data Type	Real
Value	0.00
Reference value	0.00
Unit	x CT
Curve
ID	CURVE
Name	Curve
Data Type	String
Multiplier
ID	MULTIPLIER
Name	Multiplier
Data Type	Real
Value	0.00
Reference value	0.00
Is Linear?
ID	IS_LINEAR
Name	Is Linear?
Data Type	Boolean
Is Directional?
ID	IS_DIRECTIONAL
Name	Is Directional?
Data Type	Boolean
Direction
ID	DIRECTION
Name	Direction
Data Type	String
Is Voltage Restraint?
ID	IS_VOLTAGE_RESTRAINT
Name	Is Voltage Restraint?
Data Type	Boolean

It should be looked like in the image below.

Duplicate the Phase Time Overcurrent 1 block three time and rename the second block to Phase Time Overcurrent 2. It should be looked like in the image below.

Rename the third block to Phase Time Overcurrent Active and set the ID to PTOC_ACTIVE, then add new parameter and set the following. Phase Time Overcurrent 1 and 2 will be link here using the conditional formula iff(). This formula is commonly used to compare two parameters and it will give a certain result.

GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent Active
Name
ID	NAME
Name	Name
Data Type	String

Now, enter and link the the following formula in the table below to XRIO » Phase Current » Phase Time Overcurrent 1 parameters.

GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 1
Parameter Name	Formula
Function Enabled	PTOC_FUNCTION <> DISABLED
	PTOC_FUNCTION	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 1 » Phase Time Overcurrent 1 Function
	DISABLED	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 1 » Phase Time Overcurrent 1 Function » Disabled
Pickup	PTOC_PICKUP
	PTOC_PICKUP	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 1 » Phase Time Overcurrent 1 Pickup(Setpoint)
Curve	PTOC_CURVE
	PTOC_CURVE	GE SR750/760 » Relay Parameters » Protection » Phase Time Overcurrent 1 » Phase Time Overcurrent 1 Curve
Multiplier	PTOC_MULTIPLIER
	PTOC_MULTIPLIER	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 1 » Phase Time Overcurrent 1 Multiplier
Is Linear?	PTOC_RESET = LINEAR
	PTOC_RESET	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 1 » Phase Time Overcurrent 1 Reset
	LINEAR	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 1 » Phase Time Overcurrent 1 Reset » Linear
Is Directional?	PTOC_DIRECTION <> DISABLED
	PTOC_DIRECTION	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 1 » Phase Time Overcurrent 1 Direction
	DISABLED	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 1 » Phase Time Overcurrent 1 Direction » Disabled
Direction	PTOC_DIRECTION
	PTOC_DIRECTION	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 1 » Phase Time Overcurrent 1 Direction
Is Voltage Restraint?	PTOC_VOLTAGE_RESTRAINT = ENABLED
	PTOC_VOLTAGE_RESTRAINT	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 1 » Phase Time Overcurrent 1 Voltage Restraint
	ENABLED	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 1 » Phase Time Overcurrent 1 Voltage Restraint » Enabled

Do the same in Phase Time Overcurrent 2. Enter and link the following formula in the table below.

GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 2
Parameter Name	Formula
Function Enabled	PTOC_FUNCTION <> DISABLED
	PTOC_FUNCTION	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 2 » Phase Time Overcurrent 2 Function
	DISABLED	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 2 » Phase Time Overcurrent 2 Function » Disabled
Pickup	PTOC_PICKUP
	PTOC_PICKUP	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 2 » Phase Time Overcurrent 2 Pickup(Setpoint)
Curve	PTOC_CURVE
	PTOC_CURVE	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 2 » Phase Time Overcurrent 2 Curve
Multiplier	PTOC_MULTIPLIER
	PTOC_MULTIPLIER	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 2 » Phase Time Overcurrent 2 Multiplier
Is Linear?	PTOC_RESET = LINEAR
	PTOC_RESET	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 2 » Phase Time Overcurrent 2 Reset
	LINEAR	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 2 » Phase Time Overcurrent 2 Reset » Linear
Is Directional?	PTOC_DIRECTION <> DISABLED
	PTOC_DIRECTION	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 2 » Phase Time Overcurrent 2 Direction
	DISABLED	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 2 » Phase Time Overcurrent 2 Direction » Disabled
Direction	PTOC_DIRECTION
	PTOC_DIRECTION	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 2 » Phase Time Overcurrent 2 Direction
Is Voltage Restraint?	PTOC_VOLTAGE_RESTRAINT = ENABLED
	PTOC_VOLTAGE_RESTRAINT	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 2 » Phase Time Overcurrent 2 Voltage Restraint
	ENABLED	GE SR750/760 » Relay Parameters » Protection » Phase Current » Phase Time Overcurrent 2 » Phase Time Overcurrent 2 Voltage Restraint » Enabled

Go to Test Controller block and add new block and set the following details

GE SR750/760 » Test Controller
Phase Current
ID	PTOC
Name	Phase Current

The add the following parameters in the Phase Current block under Test Controller.

GE SR750/760 » Test Controller » Phase Current
Phase Time Overcurrent
ID	PTOC
Name	Phase Time Overcurrent
Data Type	Enumeration
Enumeration Data	ID Name OFF OFF PTOC1 Phase Time Overcurrent 1 PTOC2 Phase Time Overcurrent 2
Reference Value	OFF
Value	Phase Time Overcurrent 1
Phase Instantaneous Overcurrent
ID	PIOC
Name	Phase Instantaneous Overcurrent
Data Type	Enumeration
Enumeration Data	ID Name OFF OFF PIOC1 Phase Instantaneous Overcurrent 1 PIOC2 Phase Instantaneous Overcurrent 2 PTOC1 Phase Time Overcurrent 1 PTOC2 Phase Time Overcurrent 2
Reference Value	OFF
Value	Phase Instantaneous Overcurrent 1

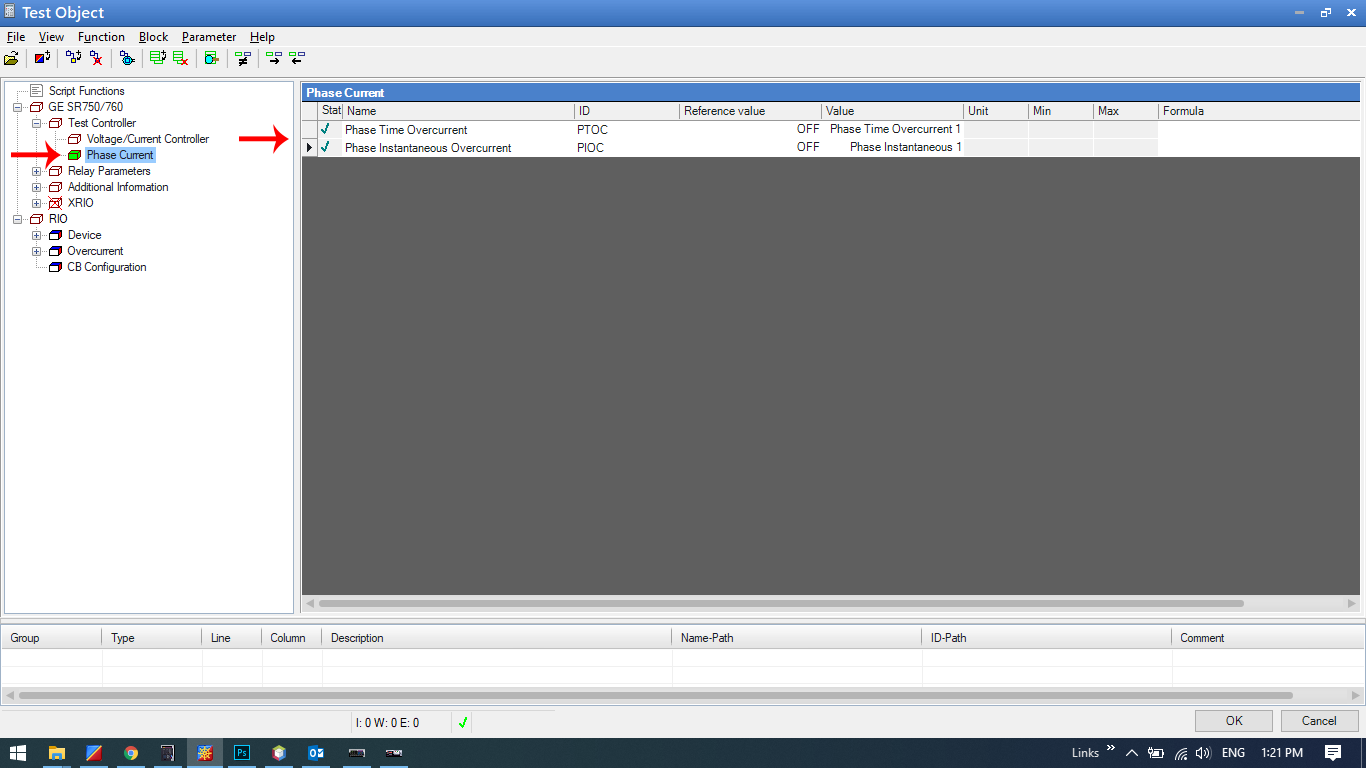

Once finished, that should be looked like in the image below

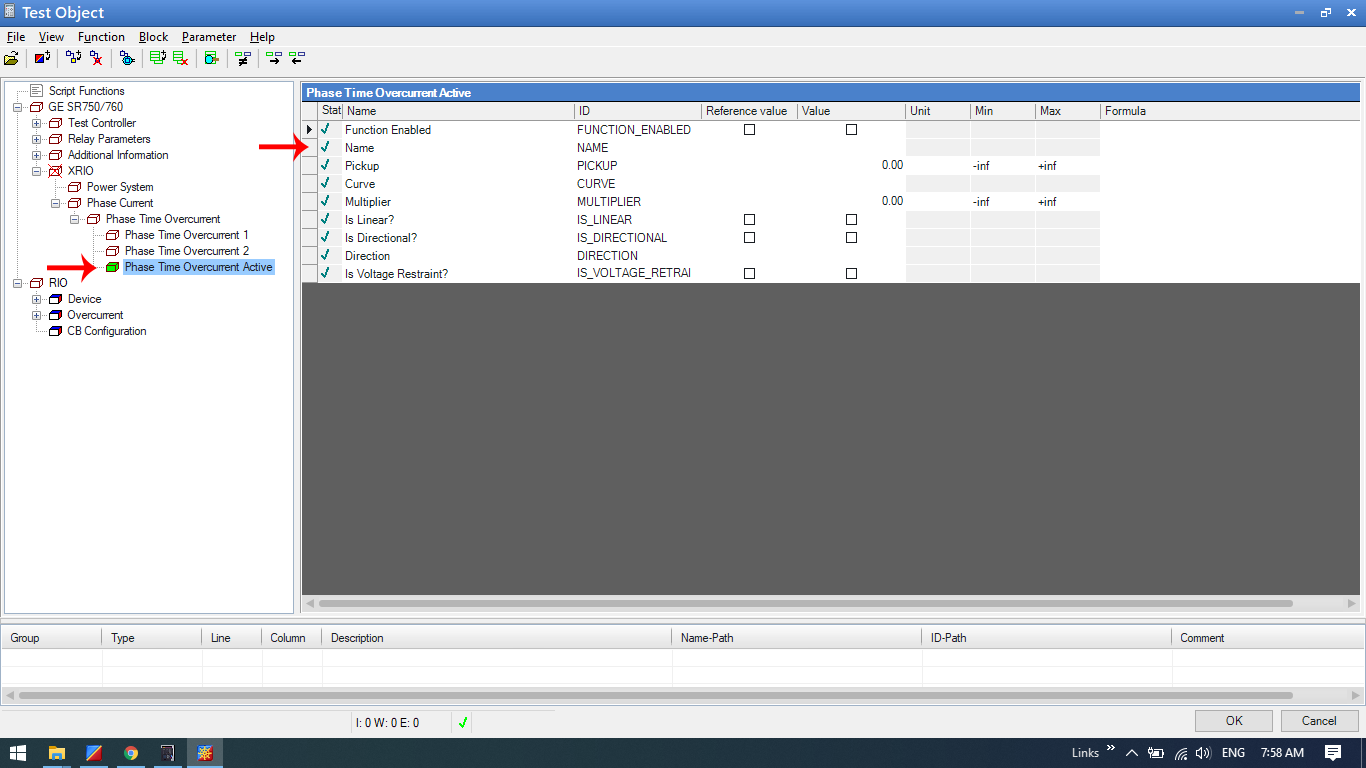

Go to Phase Time Overcurrent Active block under GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent block then enter and link the following formulas

GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent Active
Parameter Name	Formula
Function Enabled	iif(NAME = "PTOC1", FUNCTION_ENABLED, PTOC2_FUNCTION_ENABLED)
	NAME	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent Active » Name
	FUNCTION_ENABLED	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 1 » Function Enabled
	PTOC2_FUNCTION_ENABLED	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 2 » Function Enabled
Name	PTOC
	PTOC	GE SR750/760 » Test Controller » Phase Current » Phase Time Overcurrent
Pickup	iif(NAME = "PTOC1", PICKUP, PTOC2_PICKUP)
	NAME	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent Active » Name
	PICKUP	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 1 » Pickup
	PTOC2_PICKUP	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 2 » Pickup
Curve	iif(NAME = "PTOC1", CURVE, PTOC2_CURVE)
	NAME	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent Active » Name
	CURVE	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 1 » Curve
	PTOC2_CURVE	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 2 » Curve
Multiplier	iif(NAME = "PTOC1", MULTIPLIER, PTOC2_MULTIPLIER)
	NAME	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent Active » Name
	MULTIPLIER	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 1 » Multiplier
	PTOC2_MULTIPLIER	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 2 » Multiplier
Is Linear?	iif(NAME = "PTOC1", IS_LINEAR, PTOC2_IS_LINEAR)
	NAME	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent Active » Name
	IS_LINEAR	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 1 » Is Linear?
	PTOC2_IS_LINEAR	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 2 » Is Linear?
Is Directional?	iif(NAME = "PTOC1", IS_DIRECTIONAL, PTOC2_IS_DIRECTIONAL)
	NAME	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent Active » Name
	IS_DIRECTIONAL	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 1 » Is Directional?
	PTOC2_IS_DIRECTIONAL	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 2 » Is Directional?
Direction	iif(NAME = "PTOC1", DIRECTION, PTOC2_DIRECTION)
	NAME	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent Active » Name
	DIRECTION	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 1 » Direction
	PTOC2_DIRECTION	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 2 » Direction
Is Voltage Restraint?	iif(NAME = "PTOC1", IS_VOLTAGE_RETRAINT, PTOC2_IS_VOLTAGE_RETRAINT)
	NAME	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent Active » Name
	IS_VOLTAGE_RETRAINT	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 1 » Is Voltage Restraint?
	PTOC2_IS_VOLTAGE_RETRAINT	GE SR750/760 » XRIO » Phase Current » Phase Time Overcurrent » Phase Time Overcurrent 2 » Is Voltage Restraint?

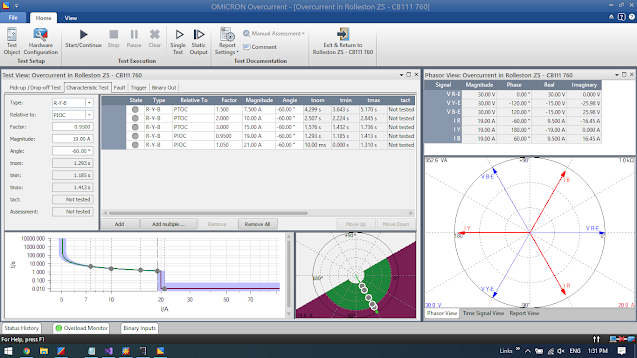

Once finished, that should be looked like in the image below.

In this tutorial you've learned adding multiple blocks, adding multiple parameters, linking parameters to other parameters, linking parameters with conditional formula like iff(), Inserting test module to test document (OCC)

In the tutorial, I will show you how to link XRIO parameters in the RIO function module. I will show you how to use this test plan during the testing of the relay.

See you next time.
