Micom SE Studio1 Import Filter - Creating Class Module For Setting File Process

Welcome back to Micom SE Studio1 Import Filter tutorial series. In the previous tutorial, I've shown you how to create user interface. Click this link Micom SE Studio1 Import Filter - Creating User Interface (UI)

In this series, I will show you how to add class module that responsible for setting file processing. Meaning, the relay has a setting configuration which can be exported in readable file like text file, xml file or csv file & etc. In this tutorial, I'm going to use text file (.txt).

Now, add new class in the SEStudio1 folder and name it with SEStudio1Import.vb. All the data from setting file will be process in this class. Copy the code below and paste it it to import section.

Imports System.IO
Imports OMXRioData

Next, we need to declare some names, functions and procedures to be used in this class module. Copy the codes below and paste them inside the SEStudio1Import.vb.

    Private _Document As OMXRioData.IAutoXRioDocument 'Storage of XRIO document
    Private RelayParameters As String = "CUSTOM.RELAY_PARAMETERS" 'Path directory of the relay paraters node at the XRIO
    Private ParentNodeName As String = "RELAY_PARAMETERS" 'The node name of the last node from the path directory of the relay parameters
    Private ImportedSetting As List(Of Parameter) 'Storage of the imported parameter in list

    Public Event AddEvent(ByVal Message As String) 'For displaying messages whithout freezing the UI

    Public HasError As Boolean = False
    Public ErrorMessages As List(Of ErrorMessage) 'Storage of the error detected

    Public Sub New(ByVal xDocument As IAutoXRioDocument)
        _Document = xDocument
    End Sub

    Public ReadOnly Property Document As IAutoXRioDocument 'Storage of XRIO document
        Get
            Return _Document
        End Get
    End Property

    'Get the name of the current node
    Private Function GetNodeName(ByVal Node As IAutoXRioBlock) As String
        If Node.Id = ParentNodeName Then
            Return ""
        Else
            Return GetNodeName(Node.ParentElementNode).Trim & "/" & Node.Name.Trim
        End If
    End Function

    Private Sub SetErrorMessages(mName As String, errMessage As String)
        If ErrorMessages Is Nothing Then
            ErrorMessages = New List(Of ErrorMessage)
        End If

        Dim Item As New ErrorMessage With {
            .Title = mName,
            .Message = errMessage
        }
        ErrorMessages.Add(Item)
    End Sub

    Public Sub AddCustomEvent(Message As String) 'This will be access outside this class to raise a message event
        RaiseEvent AddEvent(Message)
    End Sub

Next, we need to create function that responsible for opening and reading and parsing the setting file to load into the a list of parameters. Copy and paste the codes below to SEStudio1Import.vb.

    Public Function OpenFileAndImport(ByVal Filename As String) As Boolean
        Dim Result As Boolean = False
        Try
            ImportedSetting = New List(Of Parameter)
            Dim NewSettings As List(Of Parameter) = ReadMicomFile(Filename)
            If NewSettings IsNot Nothing Then
                ImportTheSettingV2(NewSettings)
                Result = True
            End If
        Catch ex As Exception
            MsgBox("The import filter might not be compatible to current test plan/routines.", MsgBoxStyle.OkOnly + MsgBoxStyle.Information, "Unexpected Error")
        End Try
        Return Result
    End Function

    Public Function ReadMicomFile(ByVal Filename As String) As List(Of Parameter)
        Dim Result As New List(Of Parameter)
        Dim BypassString As New List(Of String)
        Dim Grouped As New List(Of GroupToImport)

        Dim FileType As String = String.Empty
        Dim FormatVersion As String = String.Empty
        Dim RelayType As String = String.Empty
        Dim ModelNumber As String = String.Empty
        Dim Firmware As String = String.Empty
        Dim SerialNumber As String = String.Empty

        Dim IncludeReadOnly As Boolean
        Dim IncludeHidden As Boolean

        Using sr As New StreamReader(Filename)
            Do While Not sr.EndOfStream
                Dim Line As String = sr.ReadLine
                If Line.Contains("%") Then
                    Dim SplittedLine As String() = Line.Split(":")
                    If Line.Contains("FileType") Then
                        FileType = SplittedLine(UBound(SplittedLine)).Trim
                    ElseIf Line.Contains("FormatVersion") Then
                        FormatVersion = SplittedLine(UBound(SplittedLine)).Trim
                    ElseIf Line.Contains("RelayType") Then
                        RelayType = SplittedLine(UBound(SplittedLine)).Trim
                    ElseIf Line.Contains("ModelNumber") Then
                        ModelNumber = SplittedLine(UBound(SplittedLine)).Trim
                    ElseIf Line.Contains("Firmware") Then
                        Firmware = SplittedLine(UBound(SplittedLine)).Trim
                    ElseIf Line.Contains("SerialNumber") Then
                        SerialNumber = SplittedLine(UBound(SplittedLine)).Trim
                    ElseIf Line.Contains("IncludeReadOnly") Then
                        IncludeReadOnly = SplittedLine(UBound(SplittedLine)).Trim
                    ElseIf Line.Contains("IncludeHidden") Then
                        IncludeHidden = SplittedLine(UBound(SplittedLine)).Trim
                    Else
                        GoTo OptionElse
                    End If
                Else
OptionElse:
                    Dim SplittedLine As String() = Line.Split("|")
                    If SplittedLine.Count = 7 Then
                        '0 ID
                        '1 Block/Parent Node
                        '2 Parameter name
                        '3 Current Value
                        '4 Range Low
                        '5 Range Hi
                        '6 Step
                        If Not IsNotIncluded(SplittedLine(1).Trim) Then
                            Dim nParam As New Parameter
                            With nParam
                                .Parameter = SplittedLine(0).Trim
                                .Name = SplittedLine(2).Trim
                                .LowerLimit = SplittedLine(4).Trim
                                .UpperLimit = SplittedLine(5).Trim
                                Dim ValueSplit As String() = SplittedLine(3).Trim.Split(" ")
                                If ValueSplit.Count = 2 Then
                                    If IsNumeric(ValueSplit(0).Trim) And Not IsNumeric(ValueSplit(1).Trim) Then
                                        .Value = ValueSplit(0).Trim
                                        .Unit = ValueSplit(1).Trim
                                    Else
                                        .Value = SplittedLine(3).Trim
                                    End If
                                Else
                                    If SplittedLine(3).Trim.Contains("%") And ValueSplit.Count = 3 Then
                                        .Value = ValueSplit(0).Trim '/ 100
                                        .Unit = ValueSplit(2).Trim
                                        .LowerLimit = Val(SplittedLine(4).Trim) '/ 100
                                        .UpperLimit = Val(SplittedLine(5).Trim) '/ 100
                                    Else
                                        .Value = SplittedLine(3).Trim
                                    End If
                                End If
                            End With
                            Result.Add(nParam)
                        End If
                    End If
                End If
            Loop
        End Using
        Return Result
    End Function

    Private Function IsNotIncluded(Name As String) As Boolean
        Dim exparams As New List(Of String)
        With exparams
            .Add("RECORD CONTROL")
            .Add("DISTURB RECORDER")
            .Add("MEASURE'T SETUP")
            .Add("COMMISSION TESTS")
            .Add("CB MONITOR SETUP")
            .Add("OPTO CONFIG")
            .Add("CTRL I/P CONFIG")
            .Add("FUNCTION KEYS")
            .Add("ETHERNET NCIT")
            .Add("CTRL I/P LABELS")
            .Add("INPUT LABELS")
            .Add("OUTPUT LABELS")
            .Add("Event Control")
            .Add("Disturbance Records")
            .Add("Contacts")
            .Add("OUTPUT RELAYS")
            .Add("INPUTS")
            .Add("DVICE Module")
        End With
        Return MultiContains(Name, exparams.ToArray)
    End Function

    Public Function MultiContains(str As String, ParamArray values() As String) As Boolean
        Return values.Any(Function(val) str.Contains(val))
    End Function


    Public Function GetImportedSetting() As List(Of Parameter)
        Return ImportedSetting
    End Function

You don't need to change anything in ReadMicomFile function, That's pretty much it. The only thing can be change there is the IsNotIncluded function. You can add or remove some keywords inside the exparams list. If you want to include for example "OUTPUT RELAYS", just remove that line so that all the lines in the setting files that have "OUTPUT RELAYS" words will be included in the list of parameters to be imported in the XRIO document.

Where not done yet, because you will realize that the codes will give you an error from OpenFileAndImport function. We need to create another functions that responsible for reading the XRIO Document and apply the necessary setting value.

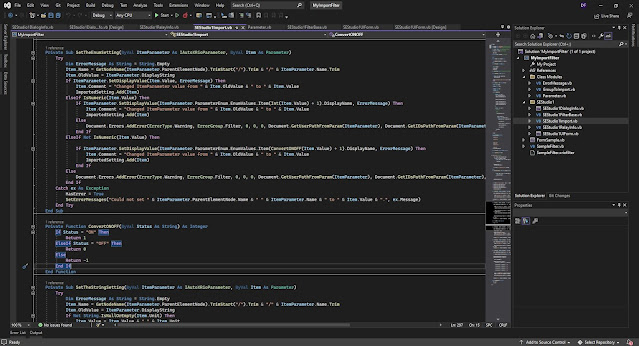

Copy and paste the codes below to SEStudio1Import.vb class and do not modify them especially the set procedures. That's the heart of the import filter I made. You can use that for all the relays if you want to. The only thing you need to change is the opening, reading and parsing file settings.

#Region "Importing setting region" 'Settings processor
    Private Function ImportTheSettingV2(ByVal File As List(Of Parameter))
        Try
            Dim Block As IAutoXRioBlock = Document.GetBlockFromIDs(RelayParameters)
            If Block.Parameters.Count > 0 Then
                For Each Param As OMXRioData.AutoParameter In Block.Parameters
                    If Not String.IsNullOrEmpty(Param.ForeignId) Then
                        Dim Parameter As Parameter = File.Find(Function(x) x.Parameter.Trim.ToUpper = Param.ForeignId.Trim.ToUpper)
                        If Parameter IsNot Nothing Then
                            SetTheNewSetting(Param, Parameter)
                            File.Remove(Parameter)
                        End If
                    End If
                Next
            End If
            If Block.Blocks.Count > 0 Then
                ReadAllBlocksAndSetParametersV2(Block, File)
            End If
            Return True
        Catch ex As Exception
            Throw New Exception("Error found in ImportTheSettingV2 function.", ex.InnerException)
            Return False
        End Try
    End Function

    Private Sub ReadAllBlocksAndSetParametersV2(ByVal Block As OMXRioData.IAutoXRioBlock, File As List(Of Parameter))
        For Each Item As OMXRioData.IAutoXRioBlock In Block.Blocks
            If Item.Parameters.Count > 0 Then
                For Each Param As OMXRioData.AutoParameter In Item.Parameters
                    If Not String.IsNullOrEmpty(Param.ForeignId) Then
                        Dim Parameter As Parameter = File.Find(Function(x) x.Parameter.Trim.ToUpper = Param.ForeignId.Trim.ToUpper)
                        If Parameter IsNot Nothing Then
                            SetTheNewSetting(Param, Parameter)
                            File.Remove(Parameter)
                        End If
                    End If
                Next
            End If
            If Item.Blocks.Count > 0 Then
                ReadAllBlocksAndSetParametersV2(Item, File)
            End If
        Next
    End Sub

    Private Sub SetTheNewSetting(ByVal ItemParameter As OMXRioData.IAutoXRioParameter, ByVal Item As Parameter)
        RaiseEvent AddEvent("Please wait: Importing " & Item.Value & " " & Item.Unit & " to " & GetNodeName(ItemParameter.ParentElementNode).TrimStart("/") & "/" & ItemParameter.Name & ".")
        If ItemParameter.DataType = OMXRioData.ParamDataType.String Then
            SetTheStringSetting(ItemParameter, Item)
        ElseIf ItemParameter.DataType = OMXRioData.ParamDataType.Integer Then
            SetTheIntegerSetting(ItemParameter, Item)
        ElseIf ItemParameter.DataType = OMXRioData.ParamDataType.Real Then
            SetTheDoubleSetting(ItemParameter, Item)
        ElseIf ItemParameter.DataType = OMXRioData.ParamDataType.Enumeration Then
            SetTheEnumSetting(ItemParameter, Item)
        ElseIf ItemParameter.DataType = OMXRioData.ParamDataType.Boolean Then
            SetTheBooleanSetting(ItemParameter, Item)
        End If
    End Sub

    Private Sub SetTheBooleanSetting(ByVal ItemParameter As IAutoXRioParameter, ByVal Item As Parameter)
        Try
            Dim ErrorMessage As String = String.Empty
            Item.Name = GetNodeName(ItemParameter.ParentElementNode).TrimStart("/").Trim & "/" & ItemParameter.Name.Trim
            Item.OldValue = ItemParameter.DisplayString
            If ItemParameter.SetDisplayValue(Item.Value, ErrorMessage) Then
                Item.Comment = "Changed parameter value from " & Item.OldValue & " to " & Item.Value
                ImportedSetting.Add(Item)
            Else
                Document.Errors.AddError(ErrorType.Warning, ErrorGroup.Filter, 0, 0, 0, Document.GetUserPathFromParam(ItemParameter), Document.GetIDsPathFromParam(ItemParameter), "Imported value could not be set.")
            End If
        Catch ex As Exception
            HasError = True
            SetErrorMessages("Could not set " & ItemParameter.ParentElementNode.Name & " " & ItemParameter.Name & " to " & Item.Value & ".", ex.Message)
        End Try

    End Sub

    Private Sub SetTheEnumSetting(ByVal ItemParameter As IAutoXRioParameter, ByVal Item As Parameter)
        Try
            Dim ErrorMessage As String = String.Empty
            Item.Name = GetNodeName(ItemParameter.ParentElementNode).TrimStart("/").Trim & "/" & ItemParameter.Name.Trim
            Item.OldValue = ItemParameter.DisplayString
            If ItemParameter.SetDisplayValue(Item.Value, ErrorMessage) Then
                Item.Comment = "Changed ItemParameter value from " & Item.OldValue & " to " & Item.Value
                ImportedSetting.Add(Item)
            ElseIf IsNumeric(Item.Value) Then
                If ItemParameter.SetDisplayValue(ItemParameter.ParameterEnum.EnumValues.Item(Int(Item.Value) + 1).DisplayName, ErrorMessage) Then
                    Item.Comment = "Changed ItemParameter value from " & Item.OldValue & " to " & Item.Value
                    ImportedSetting.Add(Item)
                Else
                    Document.Errors.AddError(ErrorType.Warning, ErrorGroup.Filter, 0, 0, 0, Document.GetUserPathFromParam(ItemParameter), Document.GetIDsPathFromParam(ItemParameter), "Imported value could not be set.")
                End If
            ElseIf Not IsNumeric(Item.Value) Then

                If ItemParameter.SetDisplayValue(ItemParameter.ParameterEnum.EnumValues.Item(ConvertONOFF(Item.Value) + 1).DisplayName, ErrorMessage) Then
                    Item.Comment = "Changed ItemParameter value from " & Item.OldValue & " to " & Item.Value
                    ImportedSetting.Add(Item)
                End If
            Else
                Document.Errors.AddError(ErrorType.Warning, ErrorGroup.Filter, 0, 0, 0, Document.GetUserPathFromParam(ItemParameter), Document.GetIDsPathFromParam(ItemParameter), "Imported value could not be set.")
            End If
        Catch ex As Exception
            HasError = True
            SetErrorMessages("Could not set " & ItemParameter.ParentElementNode.Name & " " & ItemParameter.Name & " to " & Item.Value & ".", ex.Message)
        End Try
    End Sub

    Private Function ConvertONOFF(ByVal Status As String) As Integer
        If Status = "ON" Then
            Return 1
        ElseIf Status = "OFF" Then
            Return 0
        Else
            Return -1
        End If
    End Function

    Private Sub SetTheStringSetting(ByVal ItemParameter As IAutoXRioParameter, ByVal Item As Parameter)
        Try
            Dim ErrorMessage As String = String.Empty
            Item.Name = GetNodeName(ItemParameter.ParentElementNode).TrimStart("/").Trim & "/" & ItemParameter.Name.Trim
            Item.OldValue = ItemParameter.DisplayString
            If Not String.IsNullOrEmpty(Item.Unit) Then
                Item.Value = Item.Value & " " & Item.Unit
                Item.Unit = String.Empty
            End If
            If ItemParameter.SetDisplayValue(Item.Value, ErrorMessage) Then
                Item.Comment = "Changed parameter value from " & Item.OldValue & " to " & Item.Value
                ImportedSetting.Add(Item)
            Else
                Document.Errors.AddError(ErrorType.Warning, ErrorGroup.Filter, 0, 0, 0, Document.GetUserPathFromParam(ItemParameter), Document.GetIDsPathFromParam(ItemParameter), "Imported value could not be set.")
            End If
        Catch ex As Exception
            HasError = True
            SetErrorMessages("Could not set " & ItemParameter.ParentElementNode.Name & " " & ItemParameter.Name & " to " & Item.Value & ".", ex.Message)
        End Try
    End Sub

    Private Sub SetTheIntegerSetting(ByVal ItemParameter As IAutoXRioParameter, ByVal Item As Parameter)
        Try
            Dim ErrorMessage As String = String.Empty
            Item.Name = GetNodeName(ItemParameter.ParentElementNode).TrimStart("/").Trim & "/" & ItemParameter.Name.Trim
            Item.OldValue = ItemParameter.DisplayString
            If ItemParameter.SetDisplayValue(Item.Value, ErrorMessage) Then
                Item.Comment = "Changed parameter value from " & Item.OldValue & " to " & Item.Value
                ImportedSetting.Add(Item)
            Else
                Document.Errors.AddError(ErrorType.Warning, ErrorGroup.Filter, 0, 0, 0, Document.GetUserPathFromParam(ItemParameter), Document.GetIDsPathFromParam(ItemParameter), "Imported value could not be set.")
            End If
        Catch ex As Exception
            HasError = True
            SetErrorMessages("Could not set " & ItemParameter.ParentElementNode.Name & " " & ItemParameter.Name & " to " & Item.Value & ".", ex.Message)
        End Try
    End Sub

    Private Sub SetTheDoubleSetting(ByVal ItemParameter As IAutoXRioParameter, ByVal Item As Parameter)
        Try
            Dim ErrorMessage As String = String.Empty
            Item.Name = GetNodeName(ItemParameter.ParentElementNode).TrimStart("/").Trim & "/" & ItemParameter.Name.Trim
            Item.OldValue = ItemParameter.DisplayString

            If Not ItemParameter.ParameterDouble.IsValidInternalMaxValue(Item.Value, Nothing) Or Not ItemParameter.ParameterDouble.IsValidInternalMinValue(Item.Value, Nothing) Then

            End If

            ItemParameter.ParameterDouble.InternalMin = Val(Item.LowerLimit.Trim)
            ItemParameter.ParameterDouble.InternalMax = Val(Item.UpperLimit.Trim)

            Dim _v As String() = Item.Value.Split(" ")
            If Not IsNumeric(_v(0)) Then
                Item.Value = ConvertWordToNumber(_v(0))
                Item.Unit = _v(1)
            End If
            If ItemParameter.SetDisplayValue(Item.Value, ErrorMessage) Then
                If Not String.IsNullOrEmpty(Item.Unit) Then
                    If Item.Unit.Contains("m") And Left(Item.Unit.Trim, 1) = "m" And Item.Unit.Trim <> "min" And Item.Unit.Trim <> "mn" Then
                        ItemParameter.ParameterDouble.Unit = Item.Unit.Replace("m", "")
                        ItemParameter.ParameterDouble.MultiplierSymbol = "m"
                    ElseIf Item.Unit.Contains("k") And Left(Item.Unit.Trim, 1) = "k" Then
                        ItemParameter.ParameterDouble.Unit = Item.Unit.Replace("k", "")
                        ItemParameter.ParameterDouble.MultiplierSymbol = "k"
                    ElseIf Item.Unit.Contains("u") And Left(Item.Unit.Trim, 1) = "u" Then
                        ItemParameter.ParameterDouble.Unit = Item.Unit.Replace("u", "")
                        ItemParameter.ParameterDouble.MultiplierSymbol = "u"
                    ElseIf Item.Unit.Contains("M") And Left(Item.Unit.Trim, 1) = "M" Then
                        ItemParameter.ParameterDouble.Unit = Item.Unit.Replace("M", "")
                        ItemParameter.ParameterDouble.MultiplierSymbol = "M"
                    ElseIf Item.Unit.Contains("G") And Left(Item.Unit.Trim, 1) = "G" Then
                        ItemParameter.ParameterDouble.Unit = Item.Unit.Replace("G", "")
                        ItemParameter.ParameterDouble.MultiplierSymbol = "G"
                    End If
                End If
                Item.Value = Strings.FormatNumber(Val(Item.Value), ItemParameter.ParameterDouble.DecimalPlaces)
                Item.Comment = "Changed parameter value from " & Item.OldValue & " to " & Item.Value
                ImportedSetting.Add(Item)
            Else
                Document.Errors.AddError(ErrorType.Warning, ErrorGroup.Filter, 0, 0, 0, Document.GetUserPathFromParam(ItemParameter), Document.GetIDsPathFromParam(ItemParameter), "Imported value could not be set.")
            End If
        Catch ex As Exception
            HasError = True
            SetErrorMessages("Could not set " & ItemParameter.ParentElementNode.Name & " " & ItemParameter.Name & " to " & Item.Value & ".", ex.Message)
        End Try
    End Sub

    Private Function ConvertWordToNumber(Data As String) As String
        If Data = "Blocked" Then
            Return "+inf"
        Else
            Return Val(Data)
        End If
    End Function
#End Region

In the next tutorial, I will show you how to use the SEStudio1Import.vb in the SEStudio1FilterBase.bv. See you next time.

Kabayan Page

Search This Blog

Micom SE Studio1 Import Filter - Creating Class Module For Setting File Process

Comments

Post a Comment
